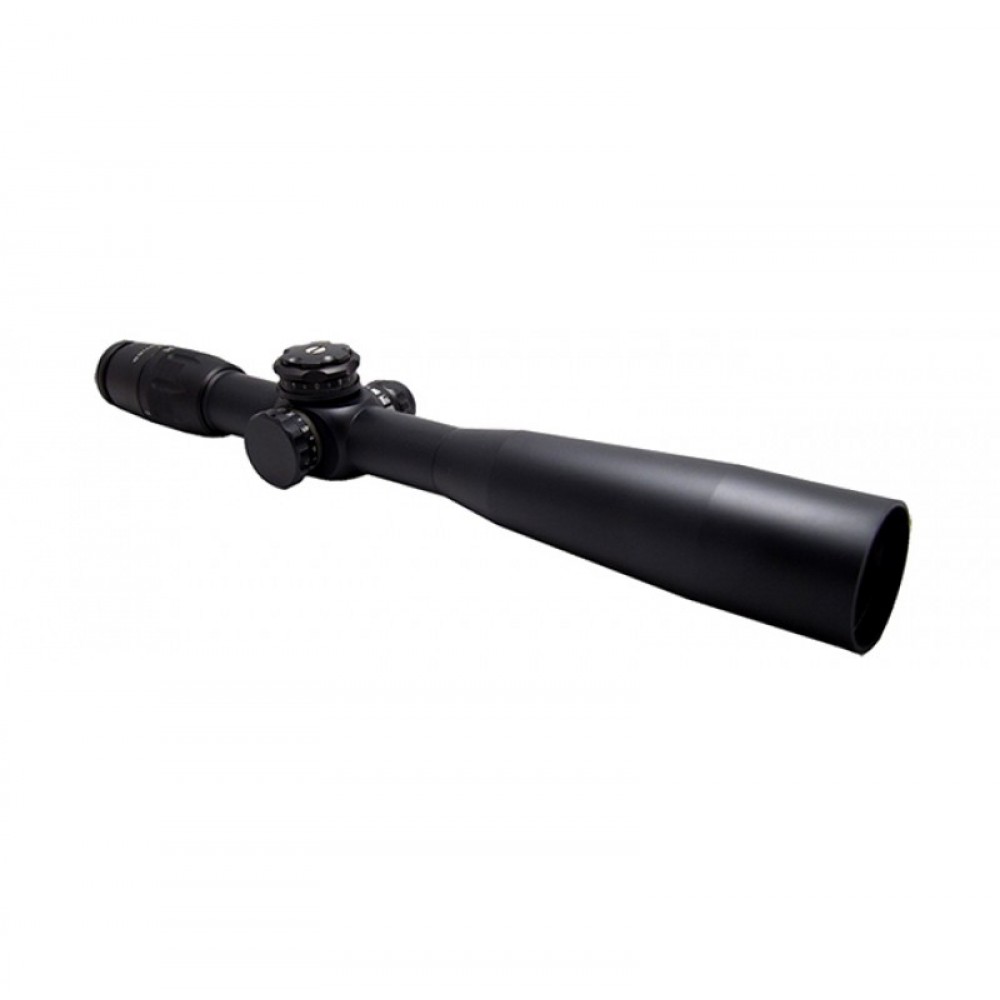

A series with premium features and numerous reticle options, US Optics' B-17 scopes are destined to find their way on to precision rifles owned by the most discerning operators and competitors.
Features:
Aluminum, 6061-T6, Matte Black finish, Type III hard-anodized
3.2x - 17x magnification
Locking elevation and windage knobs
Zero-stop
Revolution counter
Tool-less elevation zero
Single-button illumination control (integrated into the parallax adjustment knob)
2 mm Exit Pupil Diameter
+2 to -3 Diopter
50 yds to infinity Parallax Adjustment
Field of View @ 3.2x: 25.25’ @ 100 yards
Field of View @ 17x: 8.03’ @ 100 yards
3.5” / 8.9 cm Eye Relief
2.3” / 58.63 mm Objective Lens Housing Diameter
1.33” / 34 mm Tube Diameter
15.02” / 381.5 mm Overall Length
1.96” / 50 mm Objective Lens Diameter
1.40” / 35 mm Ocular Lens Diameter
31.3 oz / 0.887 kg
Red Illumination
Lithium Coin battery (CR2032); runtime up to 8,000 Hours
