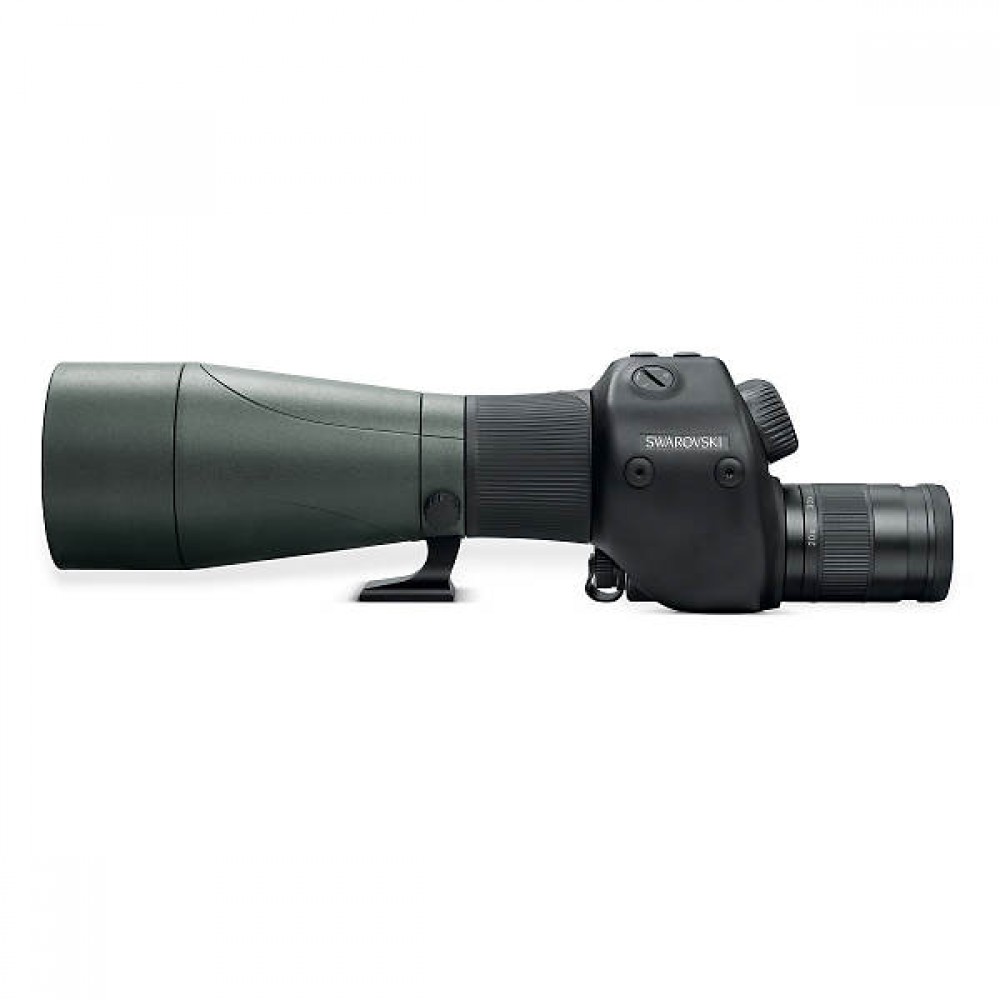

Swarovski STR 20-60x80 HD Spotting Scope Kits with MRAD reticle (Arca Swiss Foot) combine the STR-80 rangefinding spotting scope with MRAD reticle with their 20-60xS zoom eyepiece.
The Swarovski STR 80 HD with MRAD reticle (Arca Swiss Foot) is a combination of superb optical glass and a reticle that helps you accurately estimate the distance of your target. Fluoride-containing 80 mm objective lenses provide a view with no noticeable chromatic aberration for the most accurate color rendition. Swarovski treated the lenses with their premium SWAROTOP anti-reflective coating to optimize the transmission of light, producing bright in vivid images even in dim lighting. To keep the lenses clean, Swarovski employs their SWAROCLEAN hydrophobic coating to keep water, oil, and dirt from interfering with your view, making the optic require only a sparse amount of cleaning. The lenses and prisms also have a SWARODUR coating to reduce light reflection to a mere 0.2%! The MRAD reticle can be switched on to one of 15 brightness settings, extremely useful for making size and distance estimations during the day or night. Switch it off for general observation and digiscoping. These invaluable components are protected by a waterproof nitrogen purged housing with extra durable armor. You can mount the scope on any tripod with an Arca Swiss mounting socket; no need for a separate plate!
The Swarovski 20-60xS zoom eyepiece fits all ATS/STS and ATM/STM 65- and 80-mm spotting scopes. Like all Swarovski scope eyepieces, the 20-60xS zoom eyepiece is completely watertight and attaches by a locking bayonet mount. Swarovski 20-60xS zoom eyepiece displays a field of view ranging from 108 feet (20x) to 60 feet (60x) at 1000 yards. Swarovski 20-60xS zoom eyepiece features a generous 17mm eye relief, twist-out eyecup and an attached ocular lens cap.
Included In The Box
Swarovski STR 20-60x80 HD Spotting Scope with MRAD reticle
Objective Lens Cover
Bayonet Mount Cover
Specification :
Design
Viewing Angle Straight
Performance
Magnification 20 to 60x
Objective Lens Diameter 80 mm
Angle of View 20x: 65° (Apparent)
60x: 40° (Apparent)
Field of View 20x: 108.0' @ 1000 yd / 36.0 m @ 1000 m
60x: 60.0' @ 1000 yd / 20.0 m @ 1000 m
Minimum Focus Distance 19.0' / 5.8 m
Exit Pupil Diameter 20x: 4 mm
60x: 1.3 mm
Eye Relief 17.0 mm
Features
Reticle MRAD Illuminated Crosshair
Fogproof Yes, Nitrogen Filled
Water Resistance Waterproof
General
Battery / Runtime 1 x CR123 / Up to 1300 Hours
Filter Thread M82 x 0.75
Tripod Mounting Thread 1/4"-20, 3/8"-16
Operating Temperature -40 to 131°F / -40 to 55°C
Storage Temperature -40 to 158°F / -40 to 70°C
Dimensions L: 13.2" / L: 33.5 cm (Without Eyepiece)
Weight 3.8 lb / 1.7 kg
Packaging Info
Package Weight 7.3 lb
Box Dimensions (LxWxH) 18.9 x 6.3 x 4.6"
