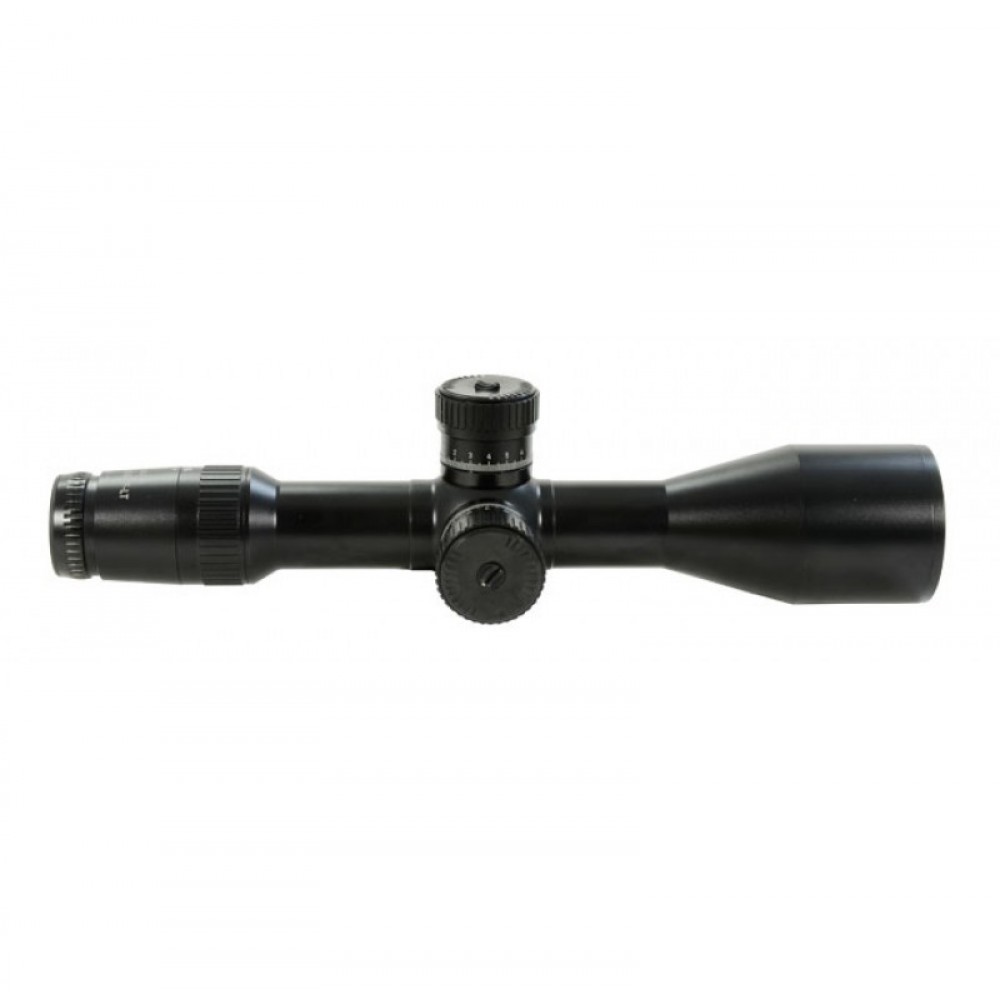

HENSOLDT ZF 4-16X56 H37 FRONT FOCAL LOCKING TURRET

In addition to high optical performance, the tactical possibilities for mission forces are decisive.

We addressed this aspect while reworking our 4-16x56 FF. The redesigned turrets are self-locking, i.e. unintentional adjustment of the reticle is not possible.

The elevation turret provides ballistic compensation of 14.5 mrad (145 clicks) in one revolution. Due to a total adjustment range of 22 mrad the user has sufficient reserves for zeroing. Users can specify themselves if the turret stops at 0 or at 5, for example. The short design and optical quality were not compromised.

Specification :

Item Condition: New

Scope Weight: 900 g

Scope Length: 334 mm

Magnification Range: 4 - 16

Scope Objective Diameter: 56 mm

Scope Tube Size / Mount: 34 mm

Scope Turret Adjustment: .1 mrad

Reticle Position: First Focal Plane

Field of View: 87 to 25 m @ 1000 m

Illuminated Reticle: no

Scope Finish: matte black

MPN: 10214529
